The HEINZMANN group offers a range of digital governors that are ideally suited for use in steam turbines. In addition to the well-known HEINZMANN digital governors, which are highly regarded in the market, the subsidiary HEINZMANN Australia manufactures the exceptional range of Si-TEC controllers for steam turbine applications. The Si-TEC range of controllers integrate seamlessly into the majority of mechanical drive and generator drive steam turbine applications.
Digital Governors
XIOSUC
DC 6
DC 6.200

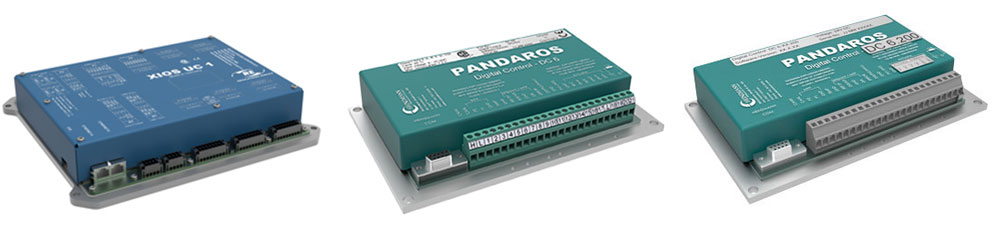

The HEINZMANN Group offers a range of digital governors that are suited for use in steam turbines.
Multi-functional and modular engine governor with advanced I/O system. Follow-up product for PRIAMOS DC 1-03 / DC 1-04.
Technical data
Diesel Engines
Gas Engines
Dual-Fuel Engines
Turbines
Industrial Vehicles
Ships
GensetsMarketed under the name PANDAROS, this is HEINZMANN’s most powerful range of digital speed governors for plants up to 3 MW. It can be combined with all types of HEINZMANN actuators up to a control torque of 40 Nm. It can be expanded to actuate two actuators.
Technical data
Diesel Engines Gas Engines Gensets
Pump Drives Ships Industrial VehiclesA version of the versatile Heinzmann DC 6 controller with an output range of 0-200mA makes it perfect for the small RE 20 actuator and other small proportional electromechanical actuators.
Technical data
Gas Turbines
Steam Turbines
Water Turbines Gensets
Overview
Si-TEC BDG
Si-TEC ADG-T
Si-TEC ADG-TT
The Si-TEC BDG and Si-TEC Xtend ADG are steam turbine controls, specifically designed for mechanical drive applications (i.e. pumps, fans, shredders, mills, etc.). These controllers offer optimum steam turbine performance during transient and steady state conditions, utilising their wide range of control speed PID’s.
The Si-TEC BDG (Basic Digital Governor) design is based on the very successful Si-TEC Xtend ADG Advanced Digital Governor. The compact design, user friendly interface, onboard data logging and wide range of PIDs makes the BDG a standard choice for steam turbine control solutions. ADG is utilised for constant and variable speed “single drive“ application, and for “dual drive“ (tandem) load sharing applications.

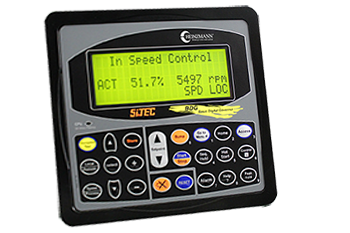

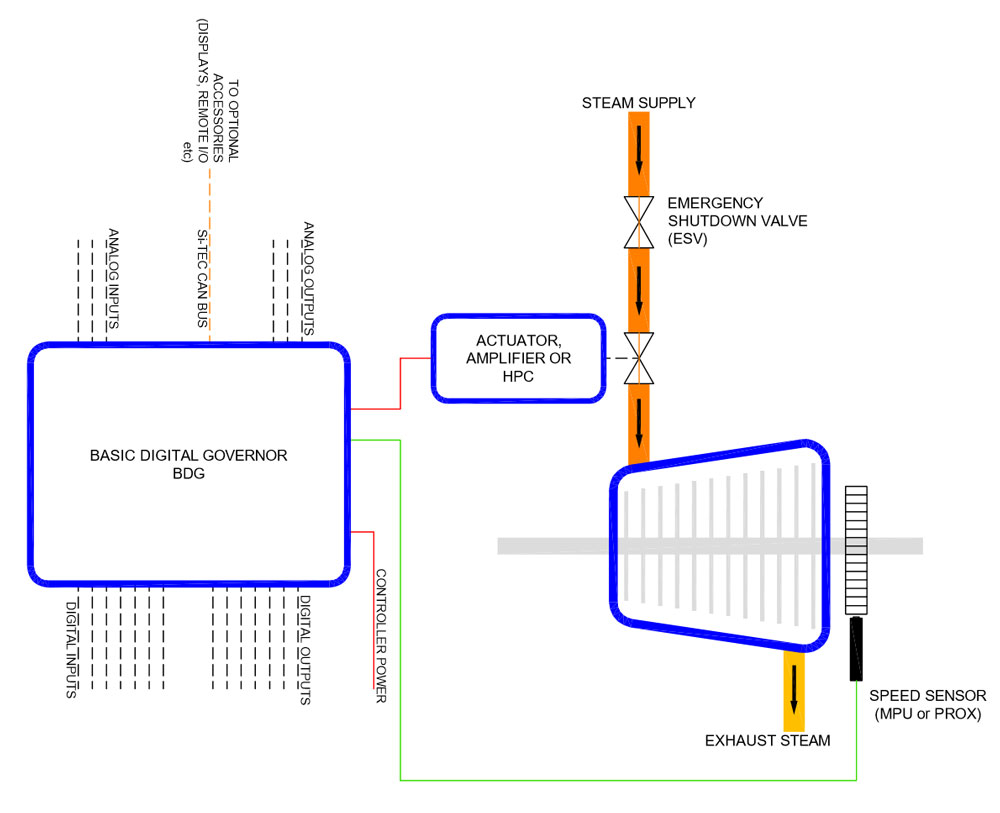

The Si-TEC BDG (Basic Digital Governor) is a steam turbine control specially designed for mechanical drive applications (i.e. pumps, fans, shredders, mills, etc.). The BDG design is based on the very successful Si-TEC Xtend ADG steam turbine controller. The compact design, user friendly interface, onboard data logging and wide range of PIDs makes the BDG a standard choice for steam turbine control solutions.
Petro-chemical
Sugar Mills
Oil and Gas
Power Plants Pumps
Fans
Shredders
Mills

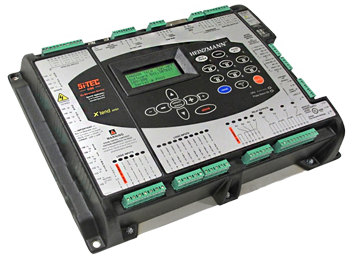

CompressorsThe Si-TEC ADG (Advanced Digital Governor) is a steam turbine control designed for mechanical drive applications (i.e. pumps, compressors, fans, shredders, etc.). Originally developed in 1991 it has since then proven to be the ultimate in steam turbine governing control, with its many features and wide range of speed PID’s the Si-TEC ADG has become the standard choice for many steam turbine operators.

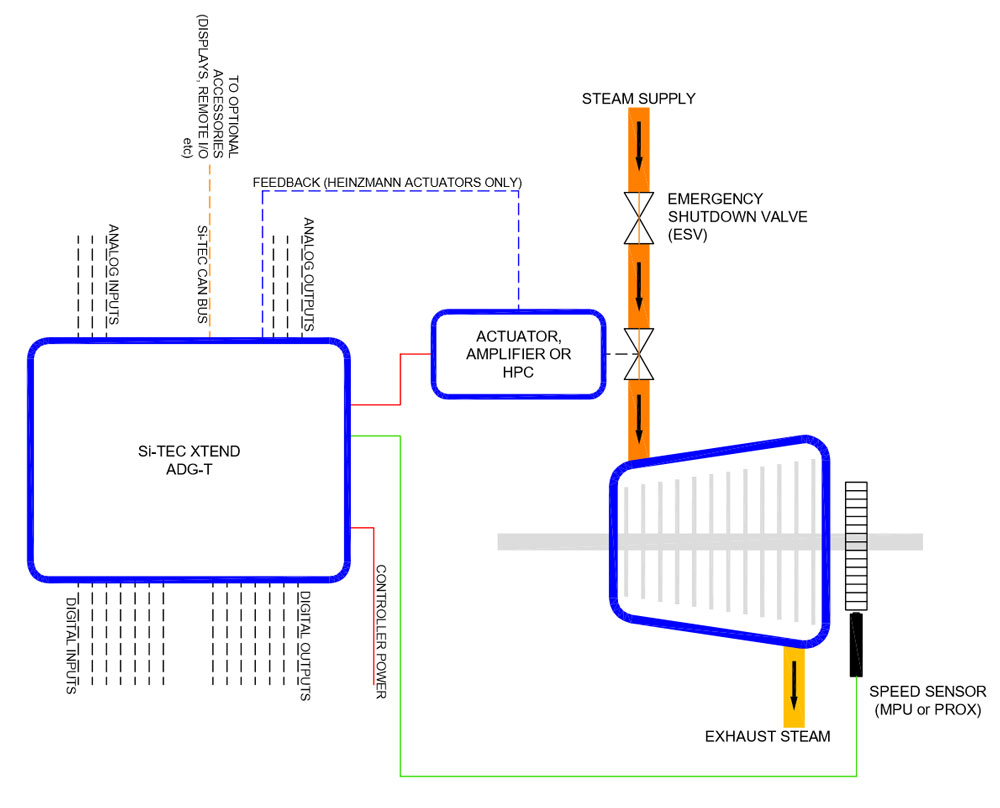

ADG-T is utilised for constant and variable speed “single drive“ application.
Petro-chemical Sugar Mills Oil and Gas Power Plants Pumps Fans Shredders Mills CompressorsThe Si-TEC ADG (Advanced Digital Governor) is a steam turbine control designed for mechanical drive applications (i.e. pumps, compressors, fans, shredders, etc.). Originally developed in 1991 it has since then proven to be the ultimate in steam turbine governing control, with its many features and wide range of speed PID’s the Si-TEC ADG has become the standard choice for many steam turbine operators.

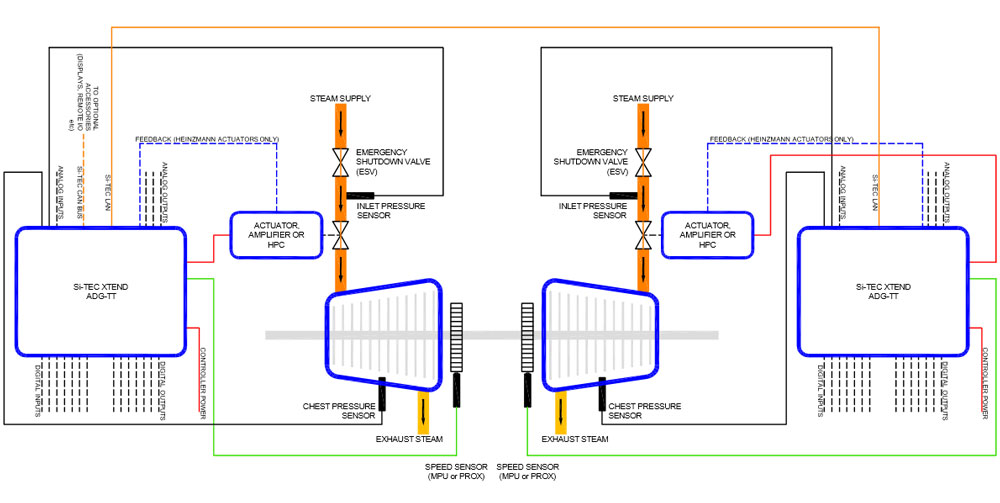

ADG-TT is utilised for constant and variable speed “dual drive“ (tandem) load sharing applications.
