The range of hydraulic actuators offered by REGULATEURS EUROPA is built on nearly seventy years of expertise in hydraulic governing. Customers in the industrial, marine and rail traction sector acknowledge these actuators for high reliability and durability along with excellent performance.
RE 2221-1G
RE 2222-3G
RE 2800-1G
The 2221 is a proportional actuator where the position of the output shaft is proportional to the electrical input signal 0-1 A. This actuator is typically used in medium/high-speed diesel engines in generator systems, steam turbines or locomotives.
Technical data
More information
Diesel Engines
Gensets
Locomotives
Steam TurbinesProportional actuator featuring a two-stage, high stiffness, backlash-free hydraulic servo mechanism for best possible control on larger engines requiring increased work outputs. Option for start/boost pressure fuel limiter and/or a mechanical-hydraulic governor as a ballhead backup.
Technical data
More information
Diesel Engines Gensets
ShipsThis model is a compact hydraulic proportional actuator used in combination with the Viking range from RE or governors from other manufacturers. It is completely interchangeable with actuators from the UG range.
Technical data
Diesel engines Gensets
Industrial Plants
HA14M
HA22M
HA14E
HA22E
HPC I-H Converter

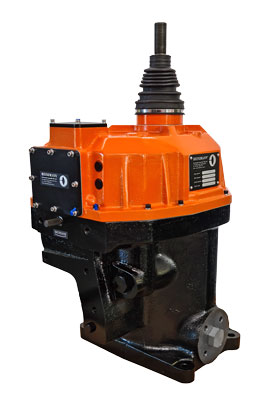

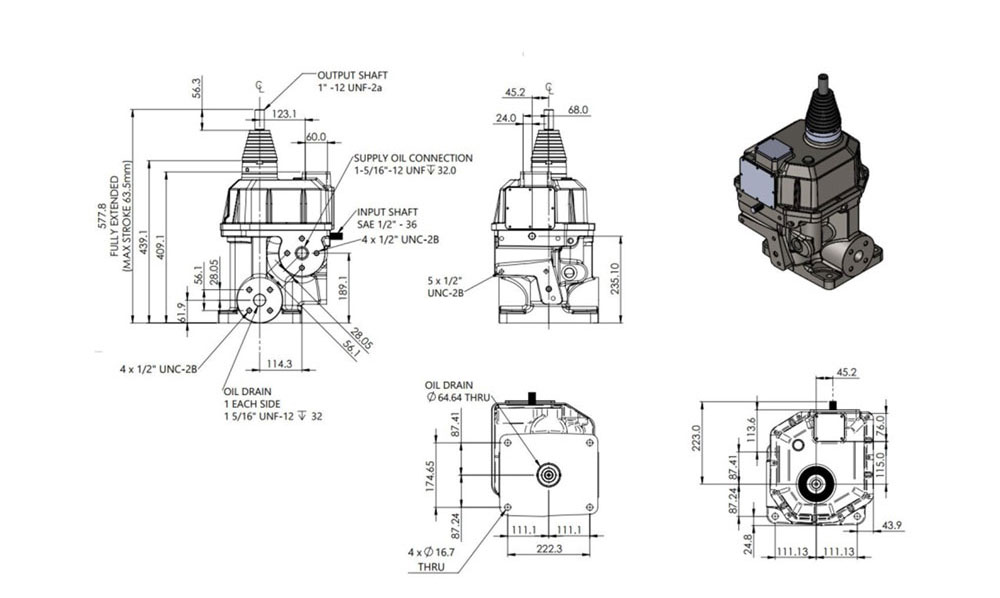

The mechanically controlled HA14M amplifier is a pilot operated linear servo actuator, which interfaces with the actuator/governor output shaft via a mechanical linkage.
Sugar Mills
Paper Mills
Geothermal
Oil & Gas

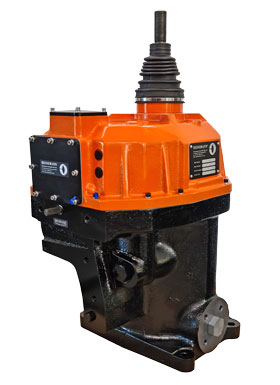

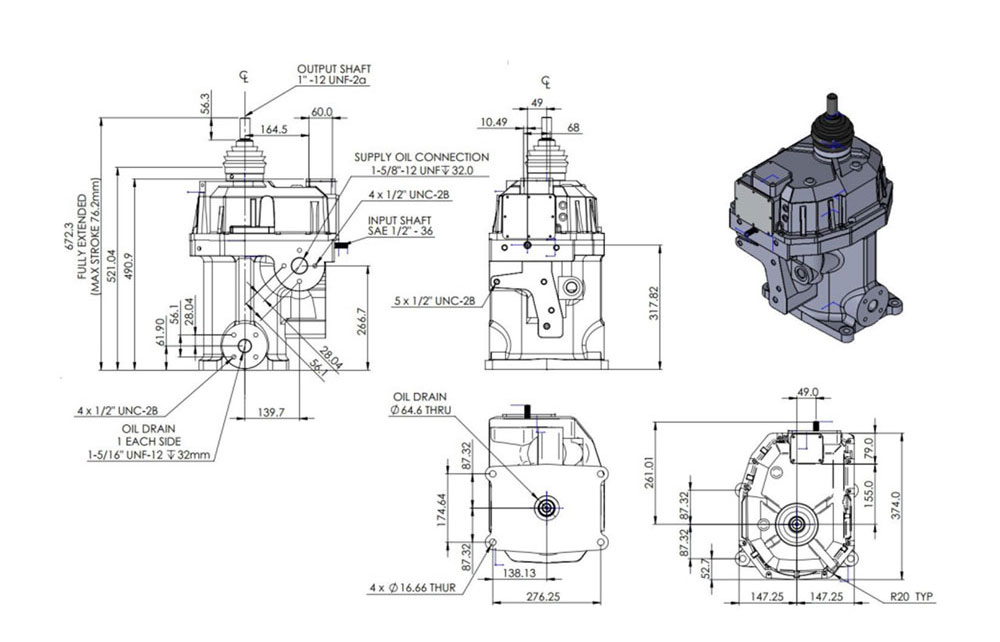

Ultility GenerationThe mechanically controlled HA22M amplifier is a pilot operated linear servo actuator, which interfaces with the actuator/governor output shaft via a mechanical linkage actuator, which interfaces with the actuator/governor output shaft via a mechanical linkage.

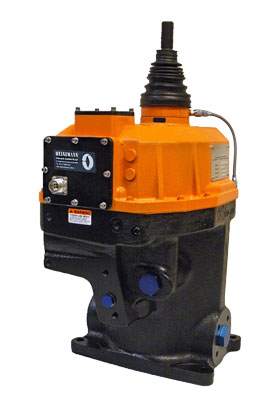

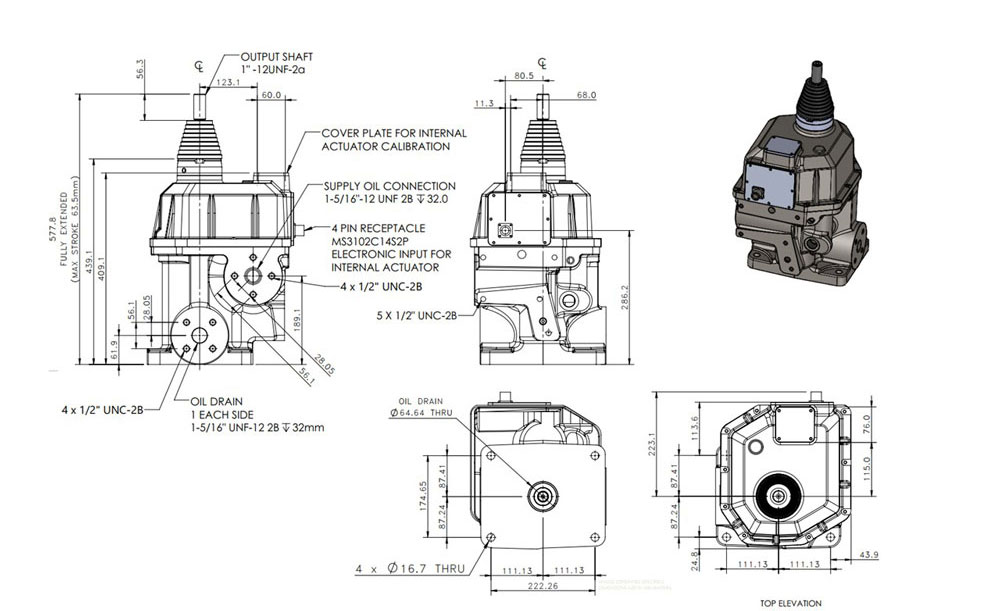

Sugar Mills Paper Mills Geothermal Oil & Gas Ultility GenerationThe electrically controlled HA14E Amplifier is a pilot operated linear servo actuator, which is used in conjunction with the Si-TEC Xtend CGC/CGC-ET governor (0 – 200 mA output), Woodward electronic governors, etc..

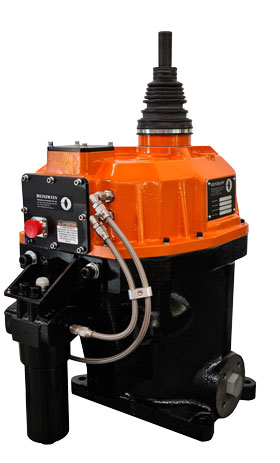

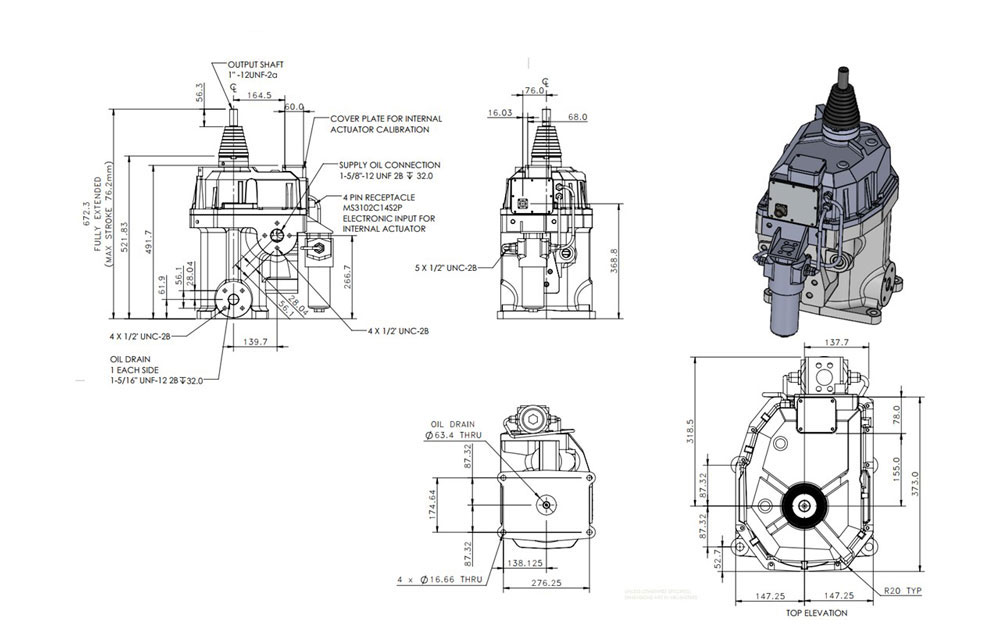

Sugar Mills Paper Mills Geothermal Oil & Gas Ultility GenerationThe electrically controlled HA22E amplifier is a pilot operated linear servo actuator, which is used in conjunction with the Si-TEC Xtend CGC/CGC-ET governor (0 – 200 mA output), Woodward electronic governors, etc.

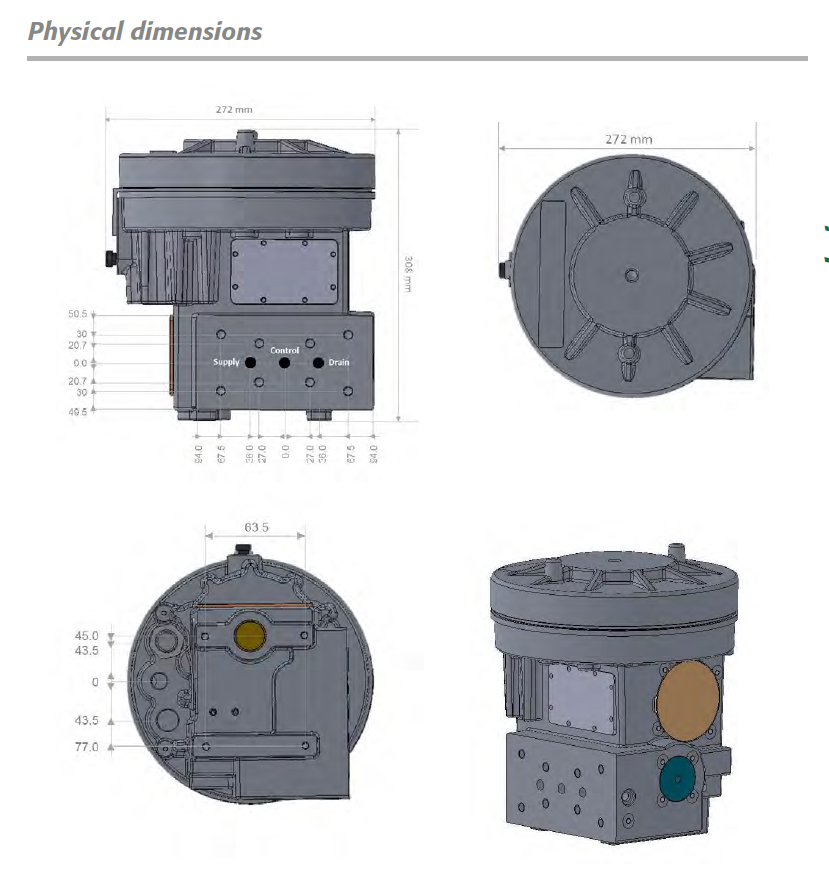

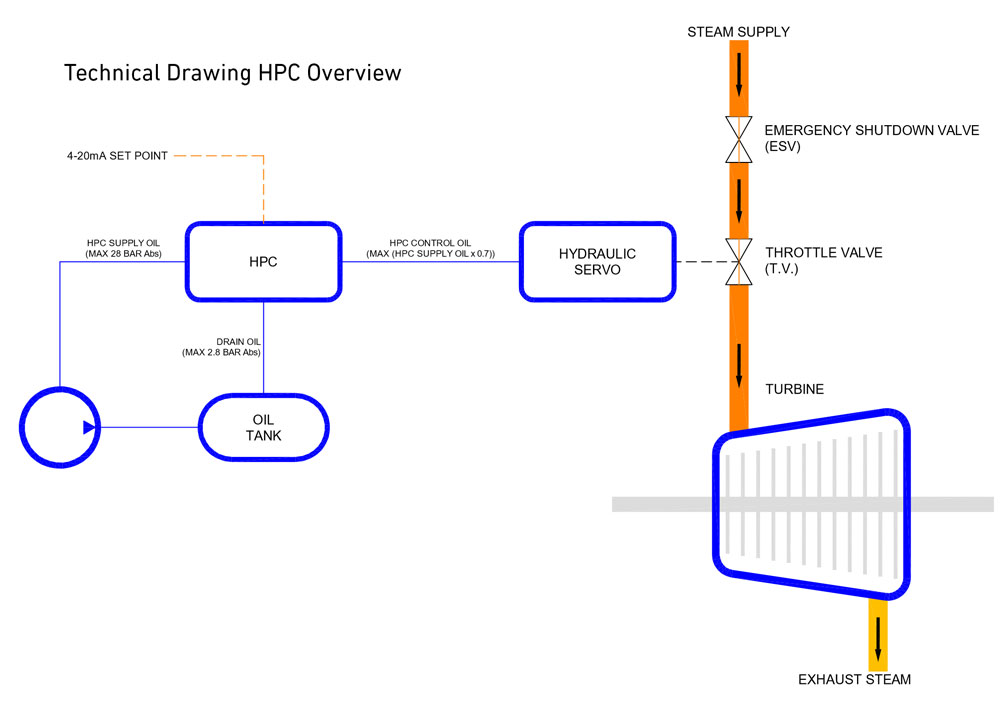

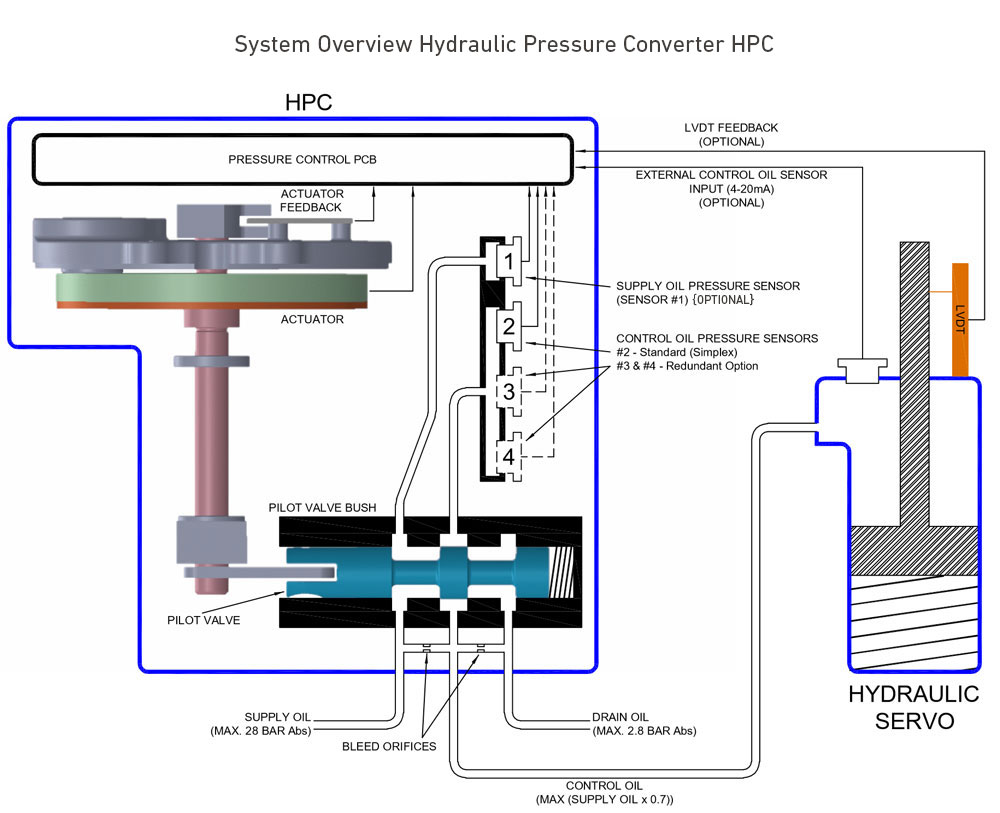

Sugar Mills Paper Mills Geothermal Oil & Gas Ultility GenerationThe HPC (Hydraulic Pressure Converter) is an electrohydraulic pressure-regulating control valve designed for use in positioning single-acting steam turbine valve servos. The HPC has been specially designed with extra attention to accuracy, response, resolution and is ideal for both inlet. “Proportional” current (4 ... 20 mA) to hydraulic pressure converter (e.g. 100 ... 500 kPa) for turbine applications that require precise hydraulic pressure control for servo valve positioning. Applications are steam turbine generators like back pressure turbines and condensing turbines. The reliable robust design of the HPC with its IP66 corrosion-resistant housing, super strong rotary actuator driving our linear pilot valve makes it ideal for the most challenging of applications where dirty or contaminated oil may be present.
